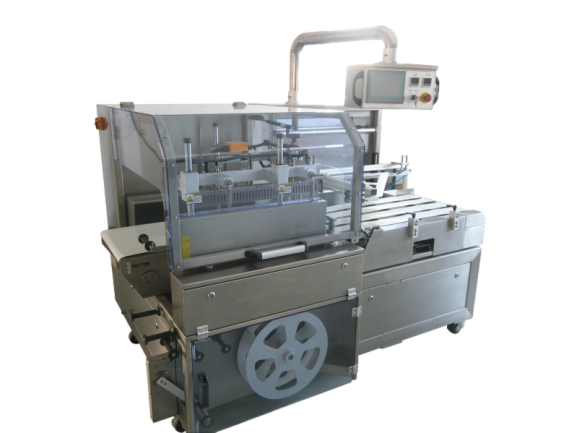

Vertical L-Bar Sealer

Multifunction, high Adaptability Moderate speed Vertical L-Bar Sealer

Speeds up to 40 ppm.

The invention of vertical L-bar sealer is a significant breakthrough technologically by E-shrink. The design of pillars drives the sealing frame acquiring a patent which contributes an outstanding sealing performance especially for packing high and thin product. Customers’ expectation is completely overwhelmed by this new design. Vertical L-bar Sealer

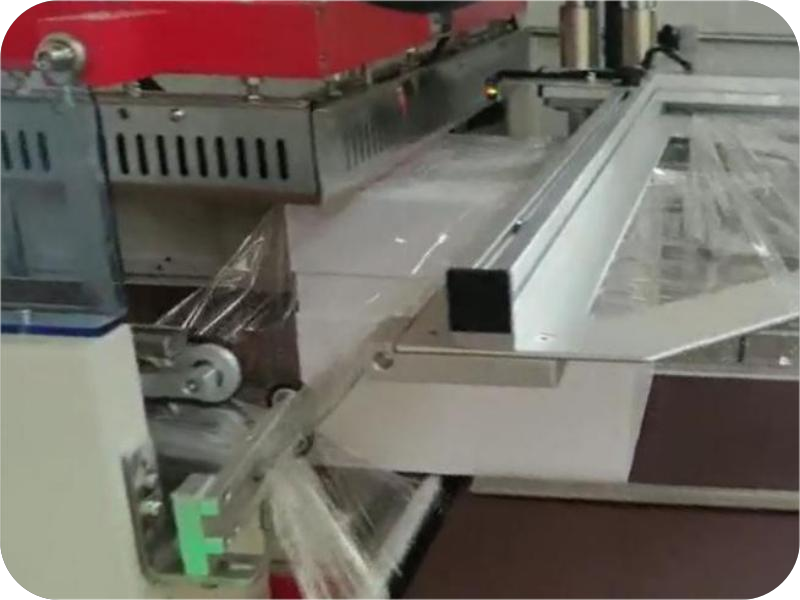

The distance between the front and rear conveyor belt can get closer for packing small products. When sealing happen, the rear conveyor will pull back for sealing bar to go downward.

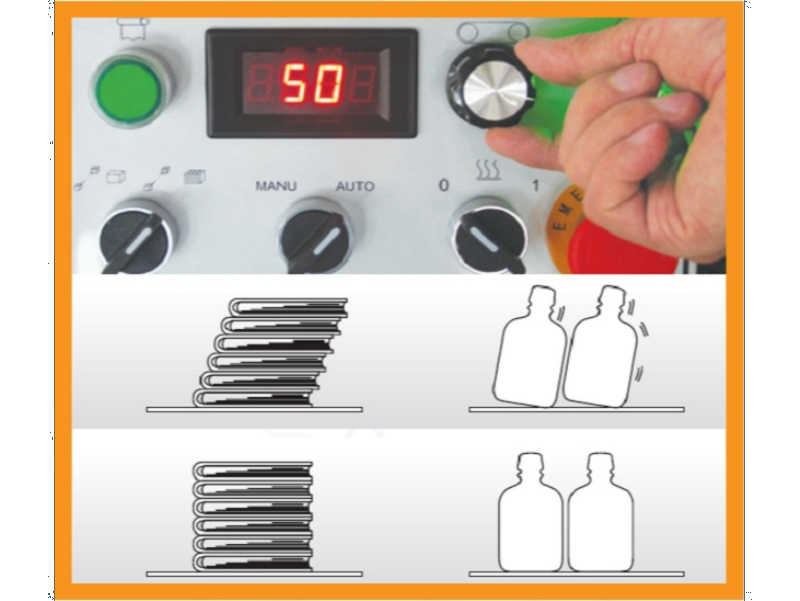

This option offer user can adjust the front and rear conveyor speed on L-bar sealer. When dealing with unstable or slippery surface product (such as bottles and a pile of books), the inertia of conveyor may affect the product alignment. Slow down the conveyor speed can improve this problem.

Advantage of vertical L-bar sealer can tailor make to rise up the sealing frame up to 400mm for packing tall product.

Stainless steel machine are available allow the machine to be working stably under high moisture and low temperature working condition.

To use with color printed films for ensure preset bag length per pack.

Feeding devices with grouping function are specially designed to feed products to form a multi packing. Several products can drive together on the same time to prohibit misalignment happen. Packaging quality is improved because of this. It can increase production speed compare to feed multi products by hand. Connecting to the existing production line can accomplish a fully automatic production

A guide rail pushing system is employed to pushing product in muti-packs format. Depends on products height and shape, different guide rail pushing systems are available.

Finger conveyor contains quick change flight lugs with stainless steel surface. With product guide rail, it is mostly used for driving a cluster to fit a wide range of products. Program connected to subsequent shrink wrapper and missing products detection is provided. Tailor made in different specifications are available.

It is designed for handling all kind of booklets, mail pieces, phone card, magazine, etc…products can be fed individually to other conveyor for subsequent process. Feeding speed can control independently for variety of usage. Systematically connect with shrink wrapper forms a complete automatic packing line.

Consistent sealing process.
Pillars drive design provides excellent stability and durability
Seal seam is neat and fix without fold line
Automatic film advance system
Two sets of photoelectric sensor system automatically compensate for package length change
